01
Assembly
Precise installation of sensors, controls and peripherals.
From assembly to daily operation.
We don't just install technology — we put it into operation: industrial assembly, commissioning and retrofit from a single source, across the entire lifecycle.
Overview
One partner for the entire lifecycle.
Planning, assembly, commissioning and modernisation interlock — with specialised experts and flexibility even in emergencies.
- Professional industrial assembly of measurement and control technology
- Commissioning including function testing and training
- Retrofit & modernisation of existing plants
- Specialised experts, flexibly deployable
- Support across the entire plant lifecycle
Key figures
One partner for the entire plant lifecycle.
Assemblyon site
Commiss.+ training
RetrofitModernisation
LifecycleSupport
In detail
Our services.
02
Commissioning
Function testing, parameterisation and handover to your team.
03
Retrofit
Upgrading existing plants with modern technology.
04
Modernisation
Step-by-step renewal instead of costly full replacement.
05
Emergency
Flexible support when things need to move fast.
06
Care
Service support for permanently safe operation.
Technology we use
Compressed Air Monitoring
Monitoring compressed air intelligently
A service unit with a flow sensor captures consumption and condition data and transmits it via IO-Link — a dashboard for pressure, flow, consumption, energy, leakage and machine states.
- SensorsService unit · IO-Link
- Operating pressure15 bar
- Unitsl · l/min · m³ · scf · scfm
POWERED BY HMG-SOLUTION

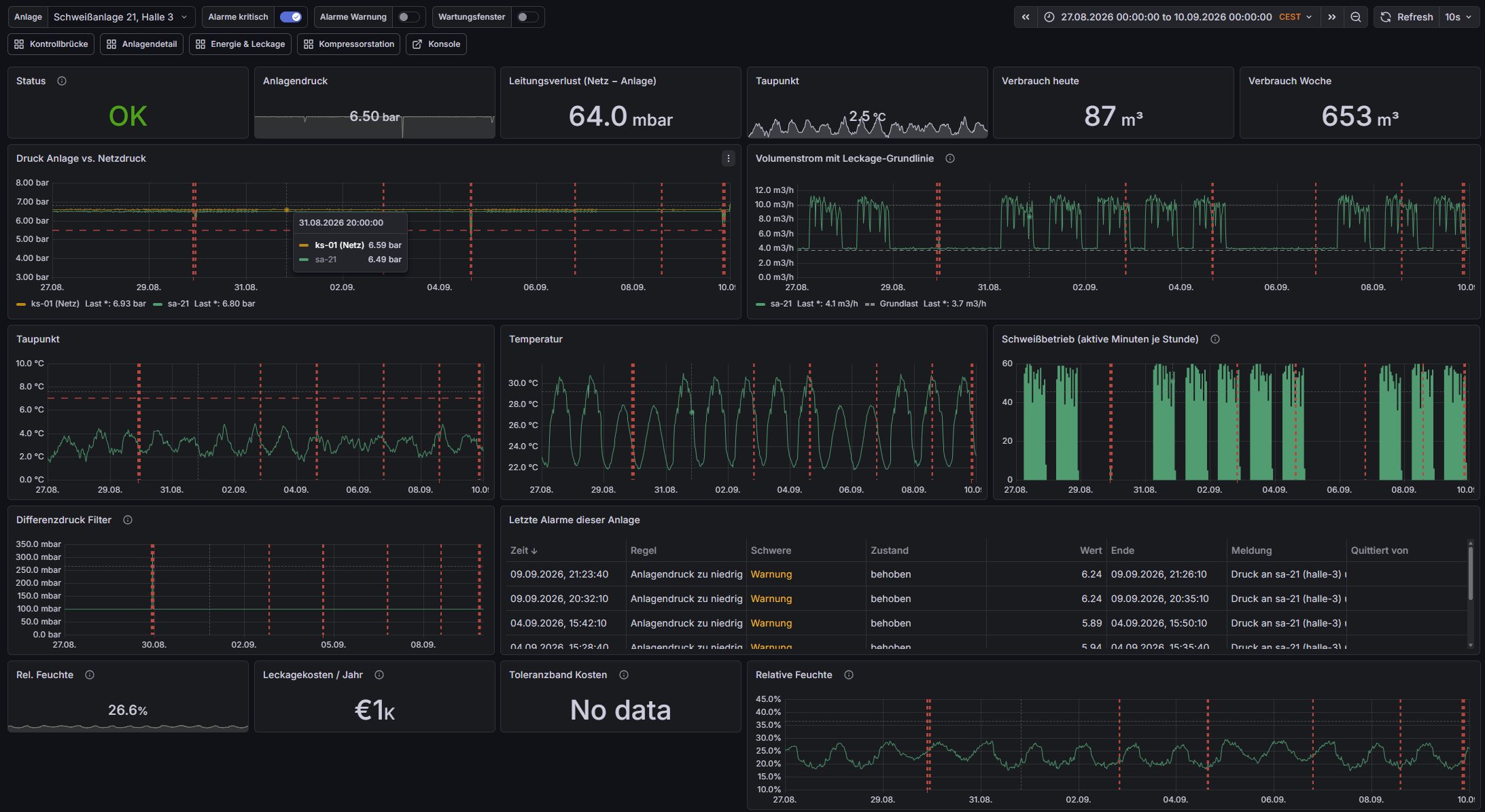

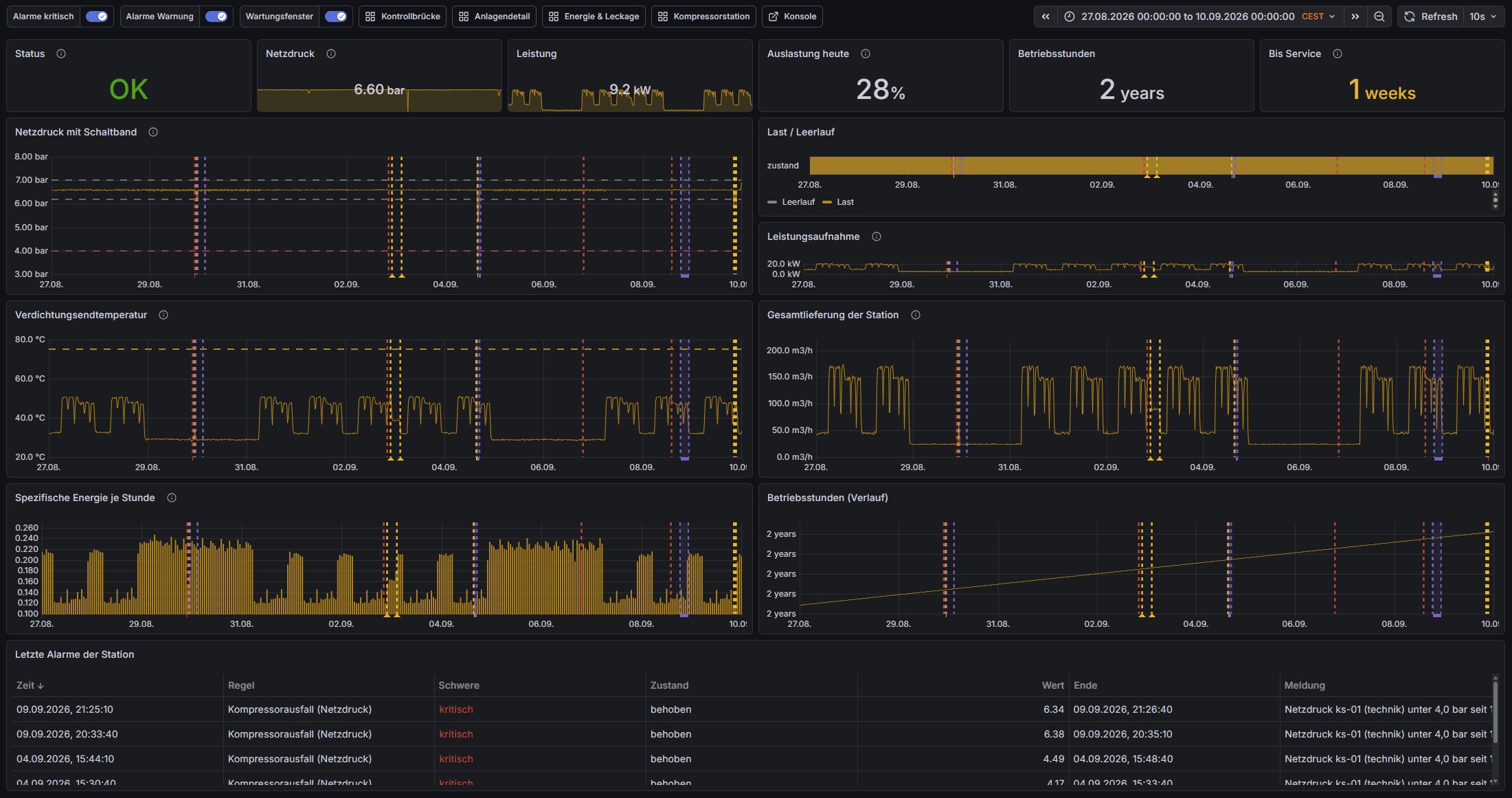

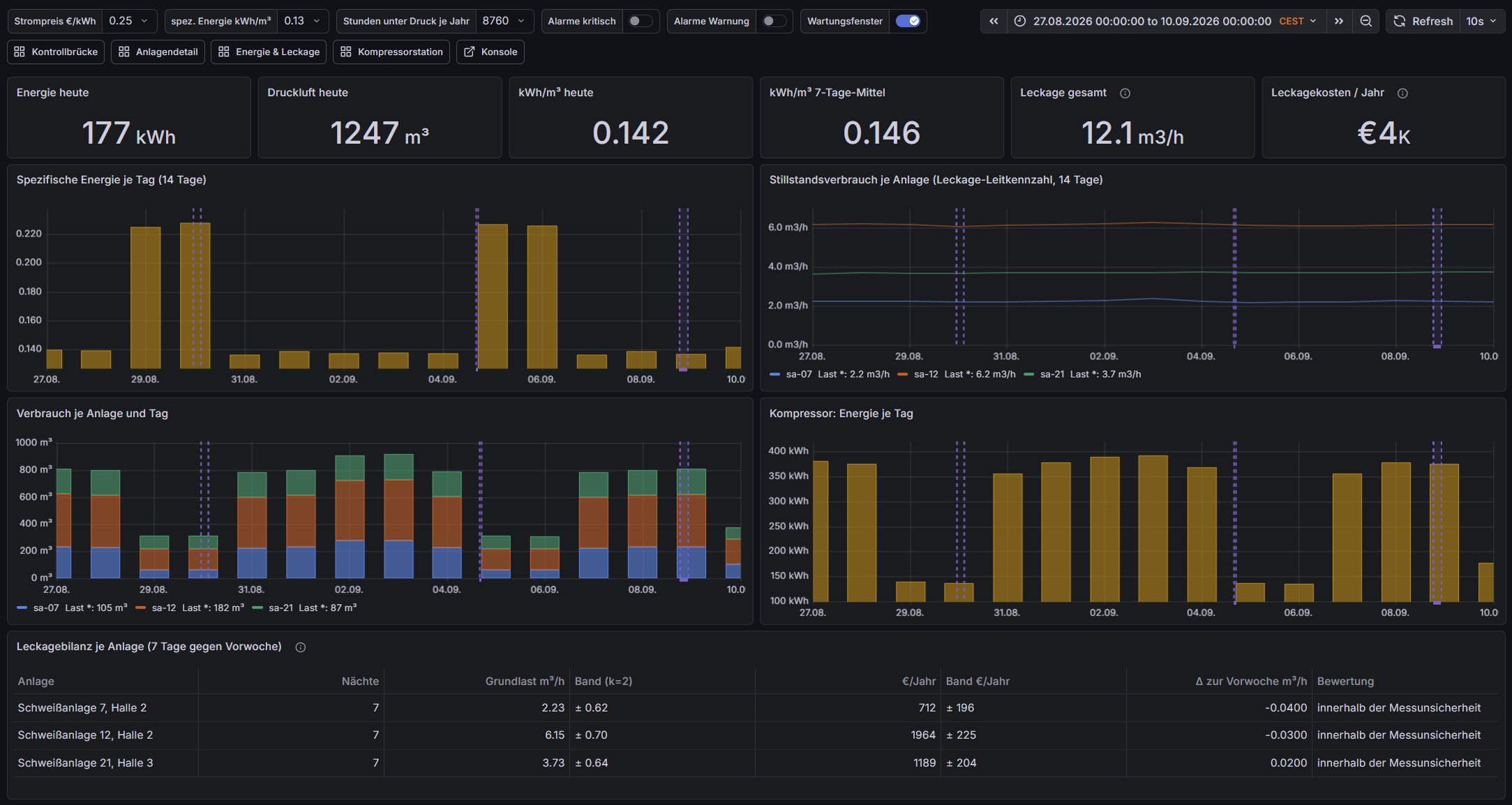

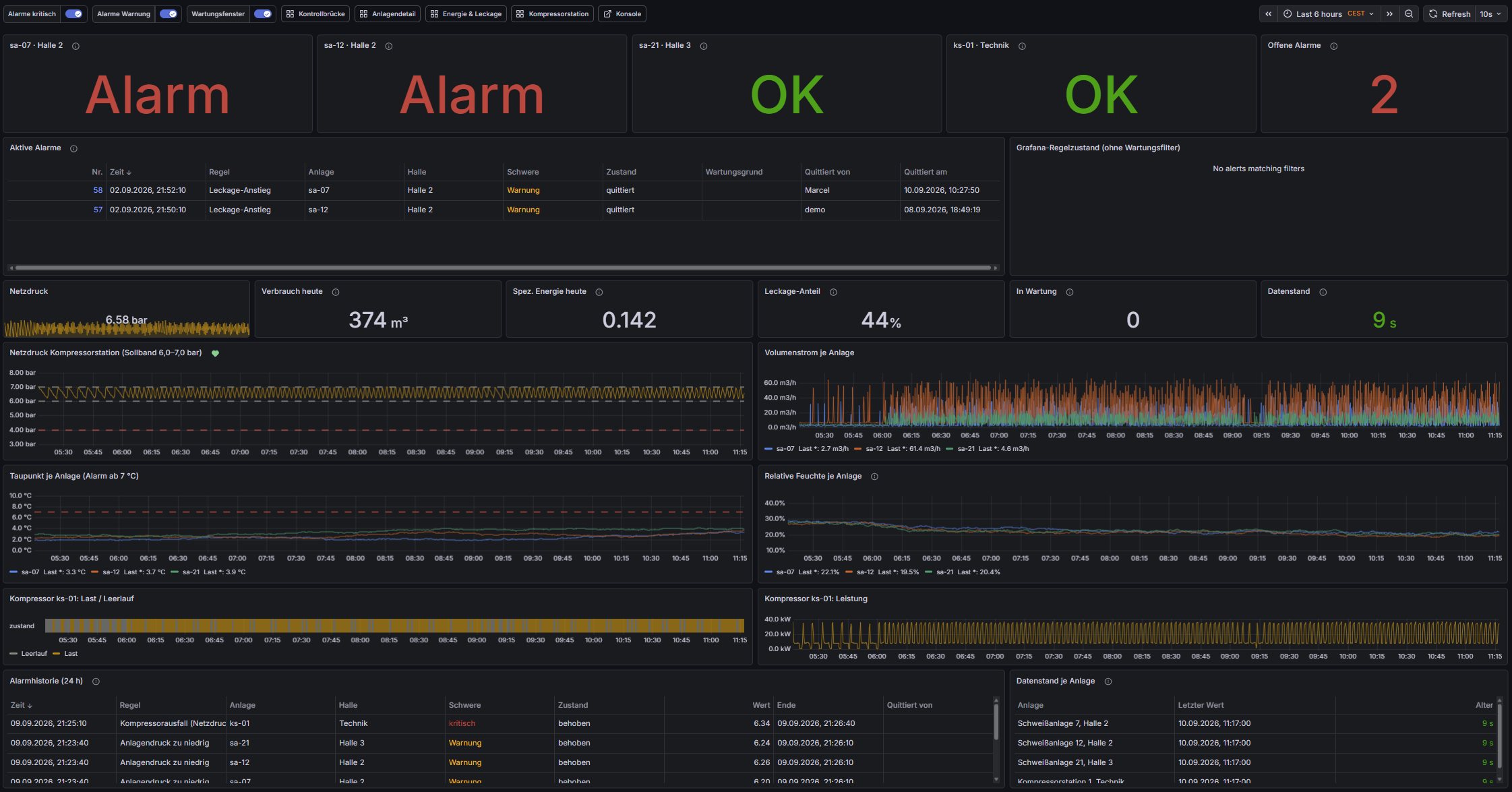

Monitoring compressed air intelligently
Compressed Air Monitoring
In many production plants compressed air is one of the largest drivers of energy use and cost — above all through leakage and avoidable consumption. A service unit with a flow sensor continuously captures consumption and condition data and transmits it via IO-Link for central evaluation. The dashboard visualises pressure, flow, consumption, energy demand, leakage and machine states. For sensitive manufacturing processes such as welding, temperature, relative humidity and dew point are monitored as well. An integrated alerting system detects critical deviations early and reports precisely where action is needed. Historised readings, trends and key figures provide a sound basis for audits, energy optimisation and condition-based maintenance — for fewer compressed-air losses, stable process conditions, lower operating costs and higher plant availability.
- SensorsService unit · IO-Link
- Operating pressure15 bar
- Unitsl · l/min · m³ · scf · scfm
- FunctionsPressure · flow · consumption · energy · leakage · dew point · alerting
- Used inCondition Monitoring · Automation · Industrial Services
